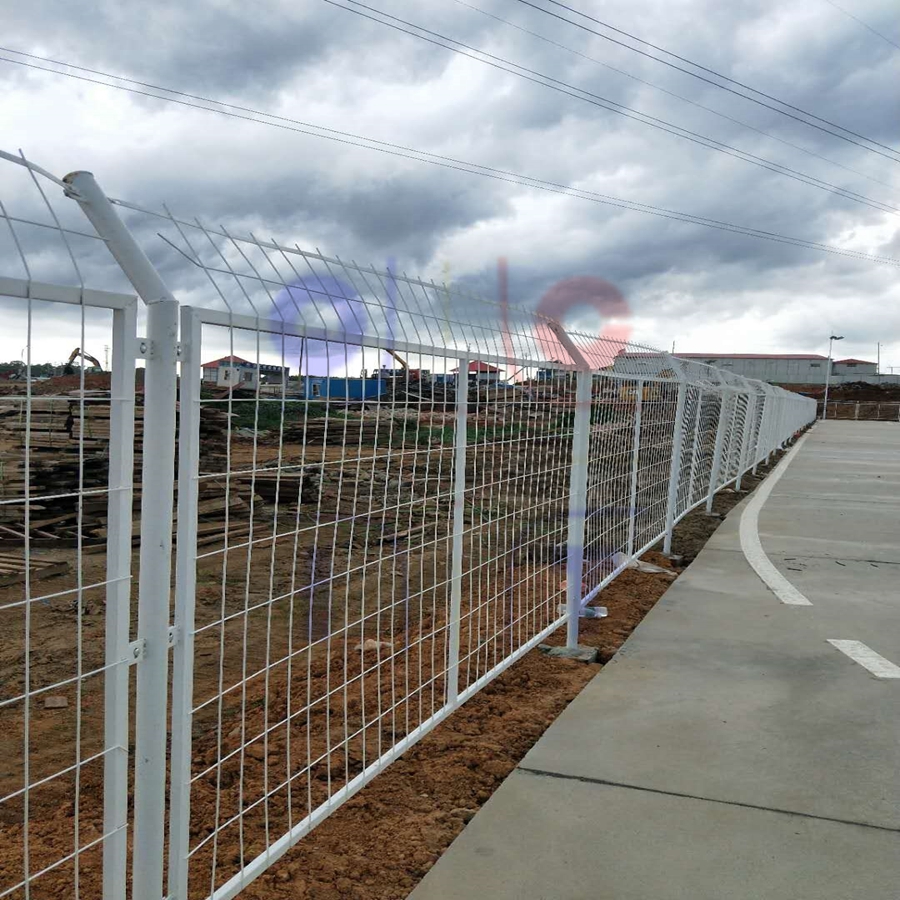

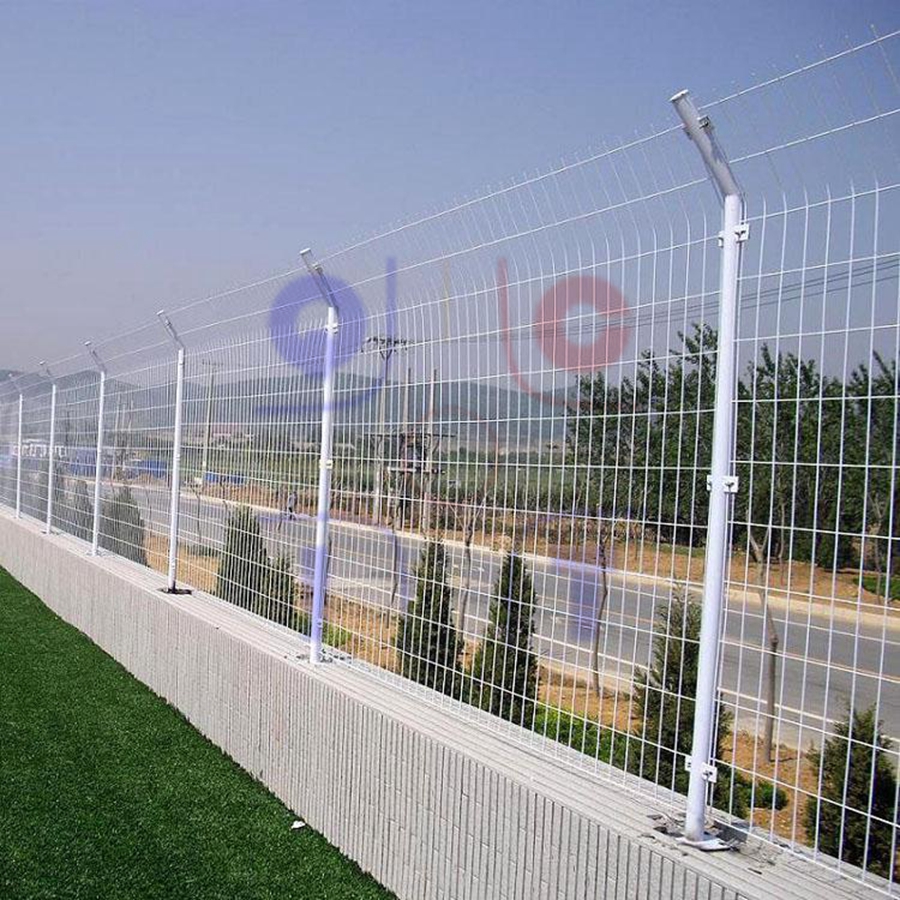

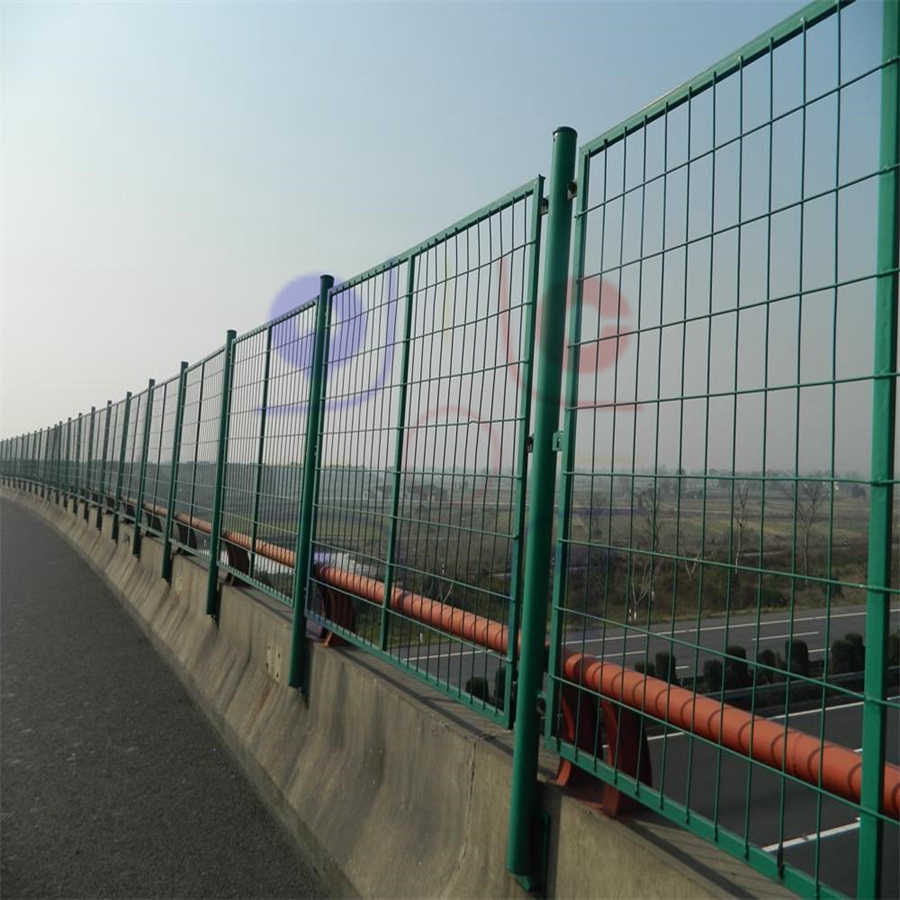

Wire Mesh Fence-02 Fence

QCIT Wire Mesh Fence Description:

QCIT welded mesh fences, formed by the iron wires, electronic galvanized wires, or hot dipped-ed galvanized wires, which are joined together welding the wires through welded mesh machine, and then bended into suitable angle in bending mesh machine.
After bending, there will be some more extra process such as powder coating.PVC coating etc. Welded mesh fencing are usually used in combination with peach post, square post or round post. Customers can choose one of them by their preference.


QCIT Wire Mesh Fence Advantages:

♦ Good through visibility and also aesthetically pleasing
♦ Robust wire and welded joints make cutting very difficult.Superior welding technique and process control create a stronger fusion between the wires.
♦ Good corrosion resistance, good security anti-aging.More small openings, no toe or finger holds
♦ Easy and quick installation



QCIT Wire Mesh Fence Common specifications:

Curved Welded Wire Mesh Fence
Panel	Mesh	Wire Thickness	Surface Treatment	Panel Width	Folds  NOS.	Panel  Height	Fence Height
Mesh Panel	50*100mm 55*100mm	4.0mm 4.5mm 5.0mm 6.0mm	Galvanized and Electrostatic polyester powder coated or PVC coated	2.5mm 3.0mm	4	2000mm	2700mm
					5	2300mm	3200mm
					6	2600mm	3700mm
V Panel					2	530mm	2700mm
						630mm	3200mm
						730mm	3700mm



Welded Wire Mesh Panel
Material	High quality low carbon steel wire Q235, Q195, S235J2
Color	Dark Green,Blue,Dark,White, Red and so on
Surface Treatment	Hot-dipped Galvanized then PVC coating Electric Galvanized then PVC coating       Hot-dipped Galvanized or Electric Galvanized
