QCIT Roadway Guardrails Classification
Corrugated steel sheet beam for highway guardrail (hereinafter referred to as guardrail) can be divided into road side guardrail and central divider guardrail.
QCIT Roadway Guardrails Composition
Composition

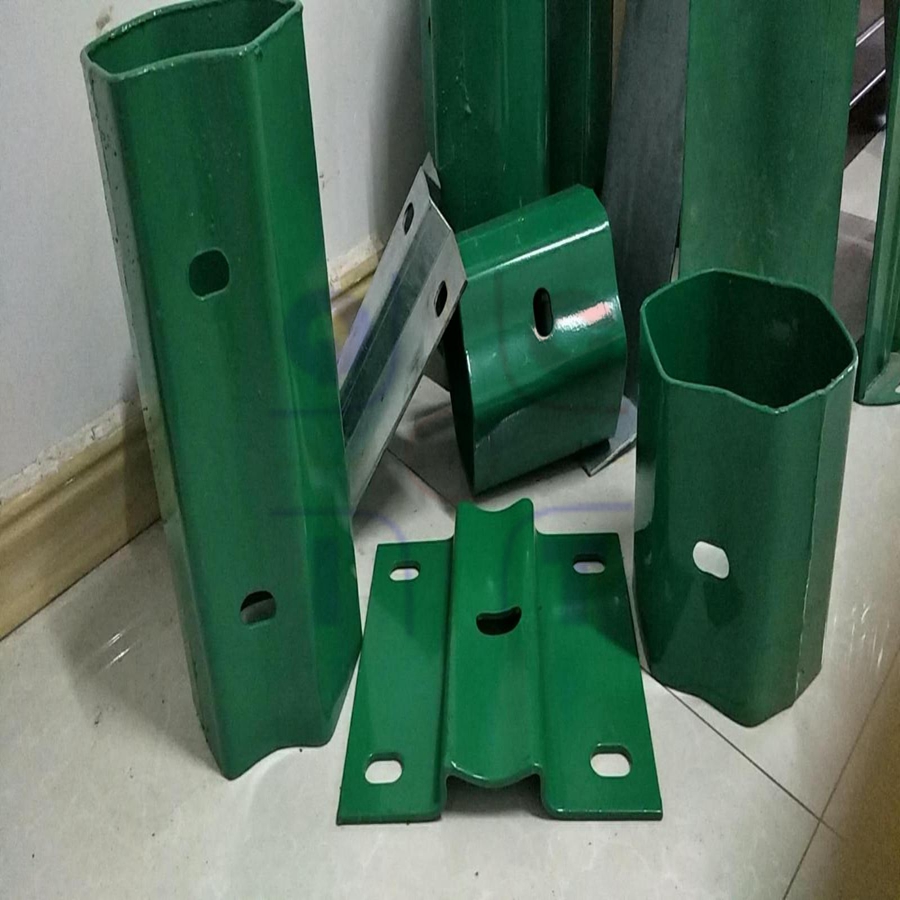

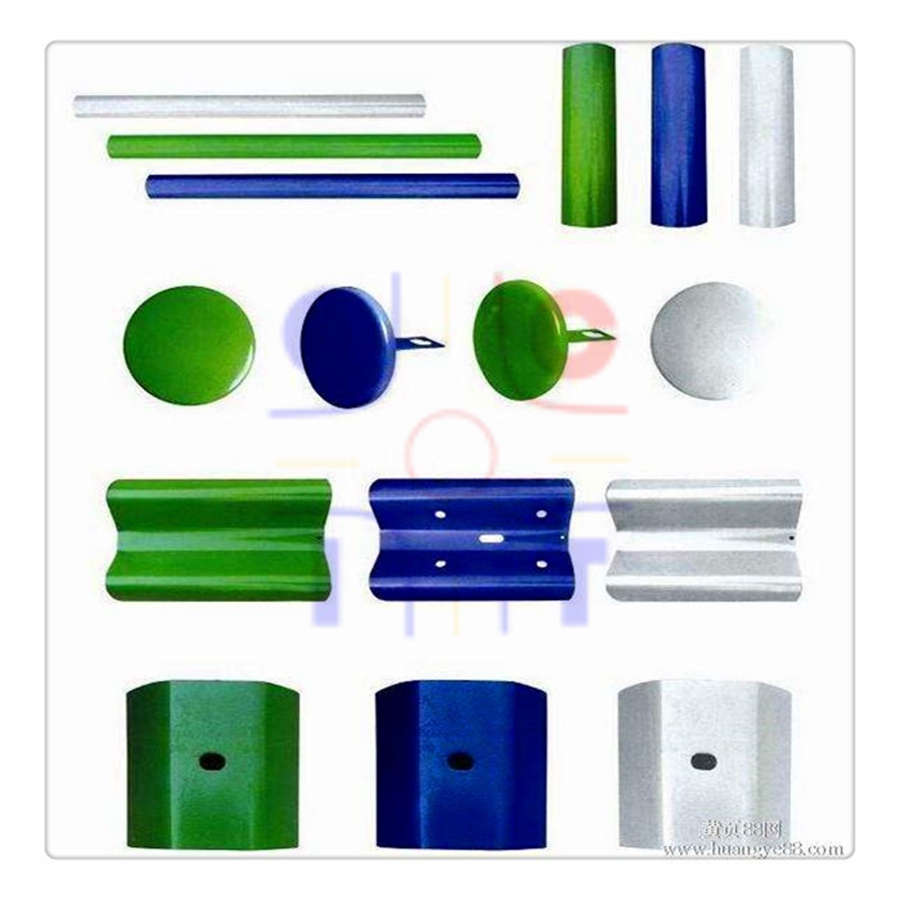

Guardrail consists of corrugated steel sheet beam, post, end, fastener, spacer and other components.
QCIT Roadway Guardrails Wave Beam
Corrugated steel sheet beam can be divided into circular arc and folded line,among which the circular arc corrugated steel sheet beam can also be divided into equal and variable section.The dimensions shall be in accordance with table 1
Table 1 Unit:mm
| Corrugated Shape | Section | Code | Specification(length×width×height×thickness) | Usage |
| Circular Arc | Equal section | DB01 | 4320x310x85x3(4) | Standard panel |
| DB02 | 3820 x 310 x 85 x 3(4) | adjusting panel | ||
| DB03 | 3320x310x85x3(4) | adjusting panel | ||
| DB04 | 2820x310x85x3⑷ | adjusting panel | ||
| Circular Arc | Variable section | BB01 | 4320 x 310 x 85 x 3(4) | Standard panel |
| BB02 | 3820x 310x85x 3(4) | adjusting panel | ||
| BB03 | 3320 x 310 x 85 x 3(4) | adjusting panel | ||
| BB04 | 2820 x 310 x 85 x 3(4) | adjusting panel | ||
| Fold line | Equal section | RB01 | 4330 x 350 x 75 x4 | Standard panel |
| RB02 | 3830 x 350 x 75 x 4 | adjusting panel | ||
| RB03 | 3330 x 350 x 75 x 4 | adjusting panel | ||
| RB04 | 2830x350x75x4 | adjusting panel |
| Product Name | Code | Specification |
| Steel tube post | C-T | φ114x4.5 |
| G-F | φ140x4.5 |
